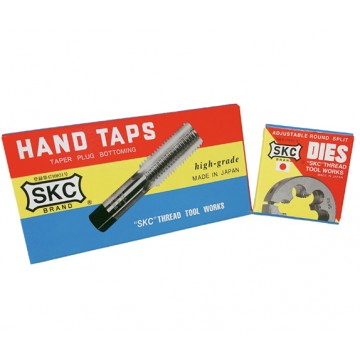

HAND TAPS & DIES

SKC "BSW" THREAD CARBON STEEL (SKS) 3-PC HAND TAP SETS 803

  • S89-2
Description:

BSW THREAD


imageTAPER
8 to 10 threads chamfered for easy thread starting in rough materials.

imagePLUG
3 to 5 threads chamfered - general use when tapping to bottom of holes is not critical. (This is the most widely used type of tap.)

imageBOTTOMING
1-1/2 threads chamfered - use after threads have been started for tapping to bottom of hole.


Packing :

1/16" - 3/4" -- 10 sets/box
7/8" - 2" -- 1 set/box


P203
Share
ITEM NO. Size x BSW Thread per Inch Quantity
089-02-004 1/16" x 60
089-02-006 3/32" x 48
089-02-008 1/8" x 40
089-02-010 5/32" x 32
089-02-012 3/16" x 24
089-02-014 7/32" x 24
089-02-016 1/4" x 20
089-02-018 9/32" x 20
089-02-020 5/16" x 18
089-02-024 3/8" x 16
089-02-028 7/16" x 14
089-02-032 1/2" x 12
089-02-036 9/16" x 12
089-02-040 5/8" x 11
089-02-044 11/16" x 11
089-02-048 3/4" x 10
089-02-056 7/8" x 9
089-02-100 1" x 8
089-02-108 1-1/8" x 7
089-02-116 1-1/4" x 7
089-02-124 1-3/8" x 6
089-02-132 1-1/2" x 6
089-02-140 1-5/8" x 5
089-02-148 1-3/4" x 5
089-02-156 1-7/8" x 4-1/2"
089-02-200 2" x 4-1/2"
