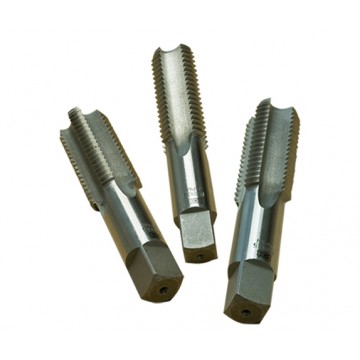

SKC "METRIC" THREAD CARBON STEEL (SKS) 3-PC HAND TAP SETS 801

  • S89-1
Description:

imageTAPER
8 to 10 threads chamfered for easy thread starting in rough materials.

imagePLUG
3 to 5 threads chamfered - general use when tapping to bottom of holes is not critical. (This is the most widely used type of tap.)

imageBOTTOMING
1-1/2 threads chamfered - use after threads have been started for tapping to bottom of hole.



Packing :

1.20 - 20.0mm -- 10 sets/box
22.0 - 64.0mm -- 1 set/box

* common sizes

P202 P203
Share
ITEM NO. Size x Pitch (MM) Quantity
089-01-010025 1.0 x 0.25
089-01-012025 1.2 x 0.25
089-01-016035 1.6 x 0.35
089-01-017035 1.7 x 0.35
089-01-020040 2.0 x 0.40 *
089-01-023040 2.3 x 0.40
089-01-025045 2.5 x 0.45 *
089-01-026045 2.6 x 0.45
089-01-030035 3.0 x 0.35
089-01-030050 3.0 x 0.50 *
089-01-030060 3.0 x 0.60
089-01-035060 3.5 x 0.60 *
089-01-040050 4.0 x 0.50
089-01-040070 4.0 x 0.70 *
089-01-040075 4.0 x 0.75
089-01-045050 4.5 x 0.50
089-01-045075 4.5 x 0.75 *
089-01-050050 5.0 x 0.50
089-01-050080 5.0 x 0.80 *
089-01-050090 5.0 x 0.90
089-01-050100 5.0 x 1.00
089-01-055050 5.5 x 0.50
089-01-055075 5.5 x 0.75
089-01-060050 6.0 x 0.50
089-01-060075 6.0 x 0.75
089-01-060100 6.0 x 1.00 *
089-01-060125 6.0 x 1.25
089-01-060150 6.0 x 1.50
089-01-070075 7.0 x 0.75
089-01-070100 7.0 x 1.00 *
089-01-070125 7.0 x 1.25
089-01-080050 8.0 x 0.50
089-01-080075 8.0 x 0.75
089-01-080100 8.0 x 1.00
089-01-080125 8.0 x 1.25 *
089-01-080150 8.0 x 1.50
089-01-080175 8.0 x 1.75
089-01-090075 9.0 x 0.75
089-01-090100 9.0 x 1.00
089-01-090125 9.0 x 1.25 *
089-01-090150 9.0 x 1.50
089-01-100050 10.0 x 0.50
089-01-100075 10.0 x 0.75
089-01-100100 10.0 x 1.00
089-01-100125 10.0 x 1.25
089-01-100150 10.0 x 1.50 *
089-01-100175 10.0 x 1.75
089-01-110075 11.0 x 0.75
089-01-110100 11.0 x 1.00
089-01-110125 11.0 x 1.25
089-01-110150 11.0 x 1.50 *
089-01-110175 11.0 x 1.75
089-01-120075 12.0 x 0.75
089-01-120100 12.0 x 1.00
089-01-120125 12.0 x 1.25
089-01-120150 12.0 x 1.50
089-01-120175 12.0 x 1.75 *
089-01-120200 12.0 x 2.00
089-01-130100 13.0 x 1.00
089-01-130125 13.0 x 1.25
089-01-130150 13.0 x 1.50 *
089-01-130175 13.0 x 1.75
089-01-140100 14.0 x 1.00
089-01-140125 14.0 x 1.25
089-01-140150 14.0 x 1.50
089-01-140175 14.0 x 1.75
089-01-140200 14.0 x 2.00 *
089-01-150100 15.0 x 1.00
089-01-150150 15.0 x 1.50 *
089-01-150200 15.0 x 2.00
089-01-160100 16.0 x 1.00
089-01-160125 16.0 x 1.25
089-01-160150 16.0 x 1.50
089-01-160175 16.0 x 1.75
089-01-160200 16.0 x 2.00 *
089-01-160250 16.0 x 2.50
089-01-160250 16.0 x 2.50
089-01-170100 17.0 x 1.00
089-01-170125 17.0 x 1.25
089-01-170150 17.0 x 1.50
089-01-170200 17.0 x 2.00
089-01-180100 18.0 x 1.00
089-01-180125 18.0 x 1.25
089-01-180150 18.0 x 1.50
089-01-180175 18.0 x 1.75
089-01-180200 18.0 x 2.00
089-01-180250 18.0 x 2.50 *
089-01-190125 19.0 x 1.25
089-01-190150 19.0 x 1.50 *
089-01-190200 19.0 x 2.00
089-01-190250 19.0 x 2.50
089-01-200100 20.0 x 1.00
089-01-200150 20.0 x 1.50
089-01-200175 20.0 x 1.75
089-01-200200 20.0 x 2.00
089-01-200250 20.0 x 2.50 *
089-01-220100 22.0 x 1.00
089-01-220150 22.0 x 1.50
089-01-220175 22.0 x 1.75
089-01-220200 22.0 x 2.00
089-01-220250 22.0 x 2.50 *
089-01-220300 22.0 x 3.00
089-01-230150 23.0 x 1.50
089-01-240100 24.0 x 1.00
089-01-240150 24.0 x 1.50
089-01-240200 24.0 x 2.00
089-01-240250 24.0 x 2.50
089-01-240300 24.0 x 3.00 *
089-01-250100 25.0 x 1.00
089-01-250150 25.0 x 1.50 *
089-01-250200 25.0 x 2.00
089-01-250300 25.0 x 3.00
089-01-260150 26.0 x 1.50
089-01-260200 26.0 x 2.00
089-01-260250 26.0 x 2.50
089-01-260300 26.0 x 3.00
089-01-270100 27.0 x 1.00
089-01-270150 27.0 x 1.50
089-01-270200 27.0 x 2.00
089-01-270300 27.0 x 3.00 *
089-01-280150 28.0 x 1.50
089-01-280200 28.0 x 2.00
089-01-280300 28.0 x 3.00
089-01-300150 30.0 x 1.50
089-01-300200 30.0 x 2.00
089-01-300300 30.0 x 3.00
089-01-300350 30.0 x 3.50 *
089-01-320150 32.0 x 1.50
089-01-320350 32.0 x 3.50
089-01-330150 33.0 x 1.50
089-01-330200 33.0 x 2.00
089-01-330300 33.0 x 3.00
089-01-330350 33.0 x 3.50
089-01-350150 35.0 x 1.50
089-01-360150 36.0 x 1.50
089-01-360200 36.0 x 2.00
089-01-360250 36.0 x 2.50
089-01-360300 36.0 x 3.00
089-01-360400 36.0 x 4.00
089-01-380150 38.0 x 1.50
089-01-390300 39.0 x 3.00
089-01-390400 39.0 x 4.00
089-01-400150 40.0 x 1.50
089-01-400200 40.0 x 2.00
089-01-400300 40.0 x 3.00
089-01-420200 42.0 x 2.00
089-01-420300 42.0 x 3.00
089-01-420400 42.0 x 4.00
089-01-420450 42.0 x 4.50
089-01-420500 42.0 x 5.00
089-01-450150 45.0 x 1.50
089-01-450200 45.0 x 2.00
089-01-450450 45.0 x 4.50
089-01-480150 48.0 x 1.50
089-01-480200 48.0 x 2.00
089-01-480300 48.0 x 3.00
089-01-480500 48.0 x 5.00
089-01-500150 50.0 x 1.50
089-01-500200 50.0 x 2.00
089-01-520300 52.0 x 3.00
089-01-520500 52.0 x 5.00
089-01-560550 56.0 x 5.50
089-01-640600 64.0 x 6.00
