PEACOCK DIAL THICKNESS GAUGE
- S82-6
Description:
Designed to measure outer thicknesses. Suitable to measure glass, rubber, metal works, plastics and paper. The contact point and anvil, made of ceramic, assure outstanding wear resistance, acid resistance and alkali resistance.
P168 Share
| ITEM NO. | MODEL | RANGE (MM) | READING (MM) | GRADUATION (MM) | MEASUREMENT DEPTH (MM) | Quantity |
|---|---|---|---|---|---|---|
| 082-06-G | G | 0~10 | 0-100 | 0.01 | 20 | |

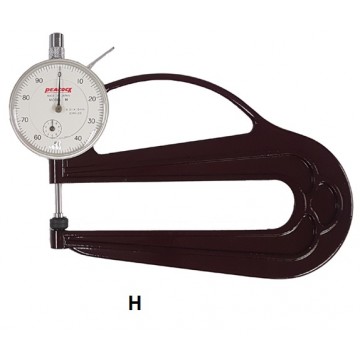

| 082-06-H | H | 0~10 | 0-100 | 0.01 | 120 |
