NES UNIVERSAL INTERNAL THREAD RESTORER
- S90-92
Description:

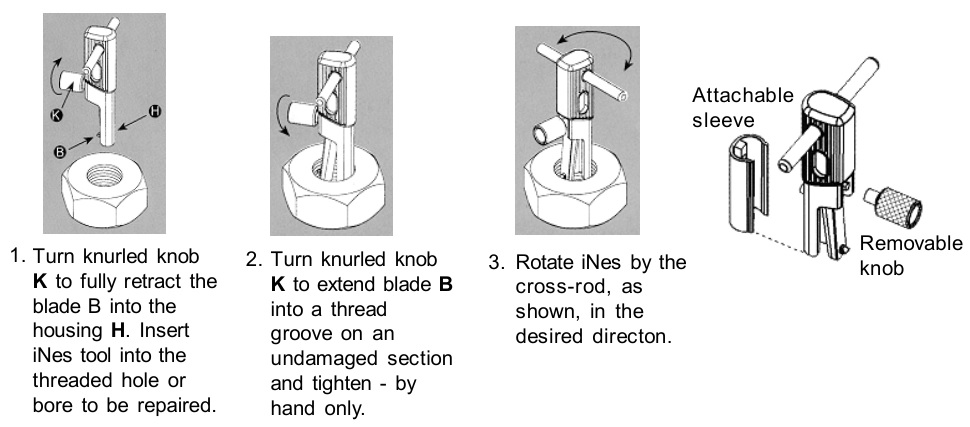

Quickly adjustable to any thread diameter and pitch within the size range indicated on the tool. Applicable to all kinds of thread - inch, metric, RH or LH, fine or coarse. A major advantage over taps is the ability to enter below the first damaged grooves - often at the start of the thread - and work in an outward direction. The blade - made of high speed steel (62RC) - is guided by the existing undamaged thread to regroove the damaged section.
Comes with 60° blade.

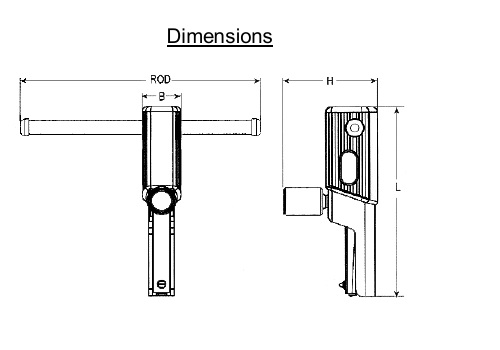

| Threaded Hole Dia. Range | L x B x H | Rod Lgth | Weight |
| ( mm / inch ) | (mm) | (mm) | (g) |
| 12-16 / 1/2 - 5/8" | 109 x 18 x 45 | 136 | 150 |
| 16-20 / 11/16 - 13/16" | 111 x 21 x 53 | 146 | 220 |
| 22-32 / 7/8 - 1-1/4" | 136 x 27 x 64 | 161 | 435 |
| 32-54 / 1-1/4 - 2-1/8" | 163 x 38 x 81 | 192 | 920 |
Note : 55° Blade is for British Standard
P227 Share
| ITEM NO. | MODEL | Quantity |
|---|---|---|
| 090-92-22 | iNes22 | |
| 090-92-23 | iNes23 | |
| 090-92-RK2255 | Replacement Blades 55° for iNes 22 | |
| 090-92-RK2260 | Replacement Blades 60° for iNes 22 | |
| 090-92-RK2355 | Replacement Blades 55° for iNes 23 | |
| 090-92-RK2360 | Replacement Blades 60° for iNes 23 | |
| 090-92-RK2460 | Replacement Blades 60° for iNes 24 |
