FUJI TOOL CENTERING BAR (EDGE FINDER) SRZ-10

Edge Finder (Steel Type)
Used in the spindle of a machine such as a mill to accurately locate the centre of a workpiece.

Repeated Accuracy ± 0.002mm.

Material : Steel (SKS).
Hardness : HRC58°

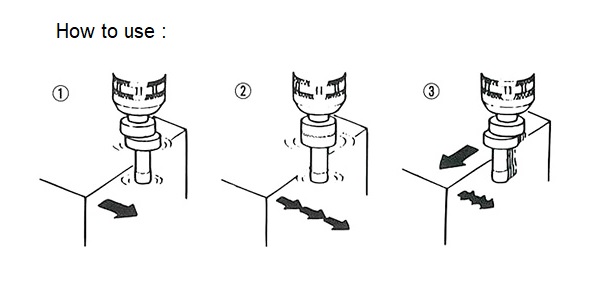

1. Equip the shank of the edge finder to a drill chuck or milling chuck; manually shift the probe slightly off its centre and let it rotate eccentrically.

2. Gently move the rotating edge finder closer and closer to the measured workpiece; when contact is established, eccentricity gets smaller. The probe (tip) then stops rotating.

3. Gently shift the probe again to make contact with the workpiece; the probe then will slide along the surface of the workpiece. This position is the reference position distanced 5mm away from the probe diameter.
