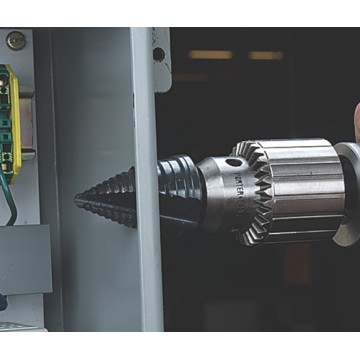

LENOX VARI-BIT® STEP DRILL BIT
- S85-13
Description:
Double-fluted VARI-BIT is made of high-speed steel with a steam oxide surface treatment. Because of its high heat and wear resistance, it cuts much faster and lasts much longer than ordinary step drills. Drills various types of material including stainless steel, metal, wood, plastic etc. Cutting depth is 1/8" (3.2mm).
Standard Packing : 1 pc / pack
P183 Share
| ITEM NO. | NO. OF HOLE SIZES | HOLE SIZES | ELECTRIC DRILL CHUCK SIZE | Quantity |
|---|---|---|---|---|
| 085-13-MVB0412 | 9 | 4, 5, 6, 7, 8, 9, 10, 11, 12mm | 6mm | |
| 085-13-MVB0528PG | 10 | 5, 7.5, 10, 12.5, 15.2, 18.6, 20.4, 22.5, 25.5, 28.3mm | 10mm | |
| 085-13-MVB0618 | 7 | 6, 8, 10, 12, 14, 16, 18mm | 10mm | |
| 085-13-MVB1424 | 7 | 14, 16, 18, 20, 22, 24, 25mm | 10mm | |
| 085-13-MVB2034 | 8 | 20, 22, 24, 26, 28, 30, 32, 34mm | 10mm | |
| 085-13-VB01 | 13 | 1/8, 5/32, 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 13/32, 7/16, 15/32, 1/2" | 1/4" | |
| 085-13-VB02 | 9 | 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1" | 3/8" | |
| 085-13-VB03 | 9 | 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4" | 3/8" | |
| 085-13-VB04 | 6 | 3/16, 1/4, 5/16, 3/8, 7/16, 1/2" | 1/4" | |
| 085-13-VB06 | 2 | 3/8, 1/2" | 1/4" | |
| 085-13-VB07 | 1 | 7/8" | 3/8" | |
| 085-13-VB07 | 1 | 7/8" | 3/8" | |
| 085-13-VB08 | 12 | 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8" | 3/8" | |
| 085-13-VB09 | 3 | 7/8, 1-1/8, 1-7/32" | 3/8" | |
| 085-13-VB11 | 2 | 7/8, 1-1/8" | 3/8" | |
| 085-13-VB12 | 5 | 7/8, 1-1/8, 1-7/32, 1-1/4, 1-3/8" | 3/8" |
