IMCO CARBIDE BURRS - 60° CONE SHAPE (SJ)
- S98-9-SJ
Description:
Often called multi-flute countersinks, use these tools for improved finishes and closer tolerance countersinking in general-purpose operations. May be used in high-production equipment.
BURR SELECTION GUIDE
Standard cut: This style has only right-hand spiral flutes, producing good stock removal and excellent surface finishes. Use this cut for general deburring in cast iron, steel, copper alloys, brass alloys and other ferrous materials.
Double cut: Right- and left-hand flutes combine to produce a chiseltype cutting edge. You get faster penetration and stock removal, and better control and less operator fatigue due to reduced pull.

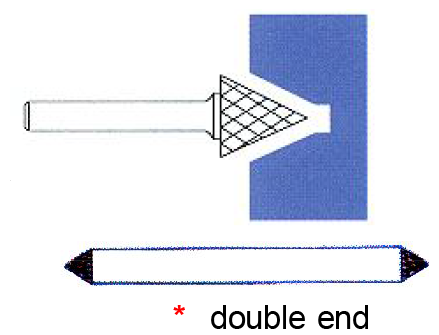

Model No. with * comes in double end
P278 Share

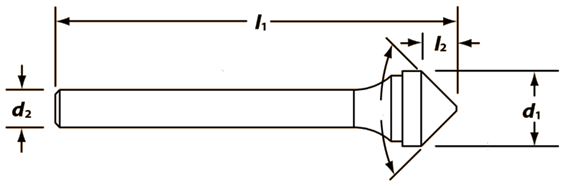

| ITEM NO. | MODEL NO. | CODE NO. | d2 Shank Dia.(mm) | d1 Cutter Dia.(mm) | l2 Cutter Lgth(MM) | l1 Overall Lgth(mm) | Quantity | |
|---|---|---|---|---|---|---|---|---|
| 098-09-606SJ | Standard Cut | SJ-1M * | 60510 | 6 | 6 | 5 | 50 | |
| 098-09-6095SJ | Standard Cut | SJ-3M | 60511 | 6 | 9.5 | 8 | 55 | |
| 098-09-6127SJ | Standard Cut | SJ-5M | 60512 | 6 | 12.7 | 11 | 58 | |
| 098-09-D606SJ | Double Cut | SJ-1M * | 60534 | 6 | 6 | 5 | 50 | |
| 098-09-D6095SJ | Double Cut | SJ-3M | 60535 | 6 | 9.5 | 8 | 55 | |
| 098-09-D6127SJ | Double Cut | SJ-5M | 60536 | 6 | 12.7 | 11 | 58 |
