IMCO CARBIDE BURRS - CYLINDER SHAPE PLAIN END (SA)

  • S98-1-SA
Description:

image-3

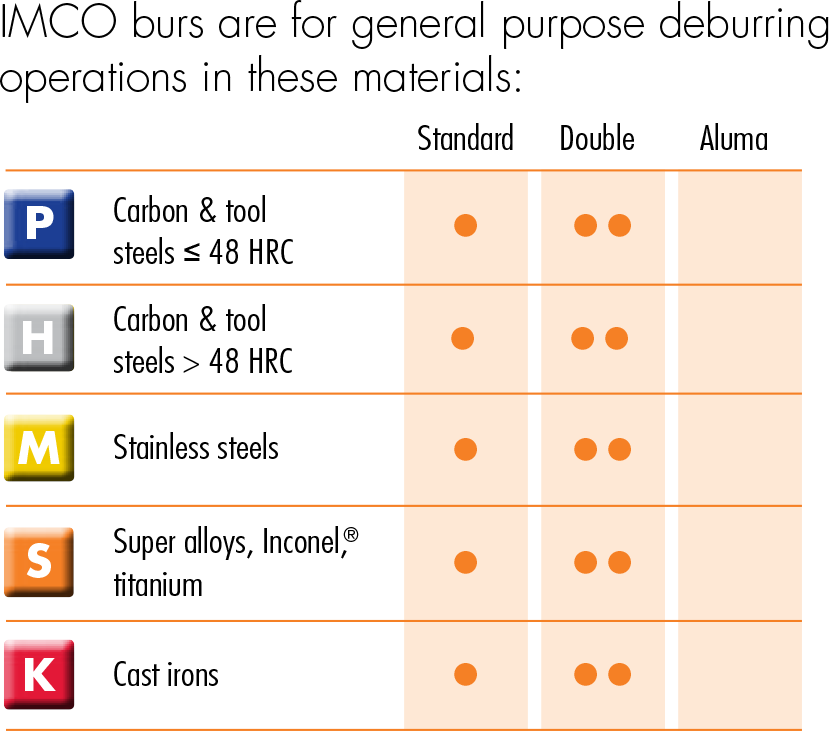

BURR SELECTION GUIDE

image-1

Standard cut: This style has only right-hand spiral flutes, producing good stock removal and excellent surface finishes. Use this cut for general deburring in cast iron, steel, copper alloys, brass alloys and other ferrous materials.

image-2

Double cut:  Right- and left-hand flutes combine to produce a chiseltype cutting edge. You get faster penetration and stock removal, and better control and less operator fatigue due to reduced pull.

image-4

image-5



image-6

P275
Share
ITEM NO. MODEL NO. CODE NO. d2 Shank Dia.(mm) d1 Cutter Dia.(mm) l2 Cutter Lgth(MM) l1 Overall Lgth(mm) Quantity
098-01-3025SA Standard Cut SA-42M 60041 3 2.5 11 38
098-01-303SA Standard Cut SA-43M 60042 3 3 14 38
098-01-304SA Standard Cut SA-52M 60044 3 4 12.7 38
098-01-3063SA Standard Cut SA-51M 60047 3 6.3 12.7 50
098-01-606SA Standard Cut SA-1M 60048 6 6 19 50
098-01-608SA Standard Cut SA-2M 60049 6 8 19 63
098-01-6095SA Standard Cut SA-3M 60058 6 9.5 19 63
098-01-611SA Standard Cut SA-4M 60059 6 11 25 69
098-01-6127SA Standard Cut SA-5M 60060 6 12.7 25 69
098-01-616SA Standard Cut SA-6M 60061 6 16 25 69
098-01-619SA Standard Cut SA-7M 60063 6 19 25 69
098-01-6254SA Standard Cut SA-9M 60064 6 25.4 25 69
098-01-D3025SA Double Cut SA-42M 60081 3 2.5 11 38
098-01-D303SA Double Cut SA-43M 60082 3 3 14 38
098-01-D304SA Double Cut SA-52M 35097 3 4 12.7 38
098-01-D3063SA Double Cut SA-51M 60087 3 6.3 12.7 50
098-01-D606SA Double Cut SA-1M 60088 6 6 19 50
098-01-D608SA Double Cut SA-2M 60089 6 8 19 63
098-01-D6095SA Double Cut SA-3M 60090 6 9.5 19 63
098-01-D6127SA Double Cut SA-5M 60092 6 12.7 25 69
098-01-D616SA Double Cut SA-6M 60093 6 16 25 69
098-01-D619SA Double Cut SA-7M 60095 6 19 25 69
098-01-D6254SA Double Cut SA-9M 60096 6 25.4 25 69
