MOUNTED POINTS
MODERN / ANCHOR MOUNTED POINT - A SERIES
- S109-2-A
Description:
These aluminium oxide mounted points come with standard 1/4" shank.
Modern Brand - Brown colour
Anchor Brand - Pink colour
P292 Share
| ITEM NO. | BRAND | MODEL | BASE DIA. | HEIGHT | Quantity |
|---|---|---|---|---|---|

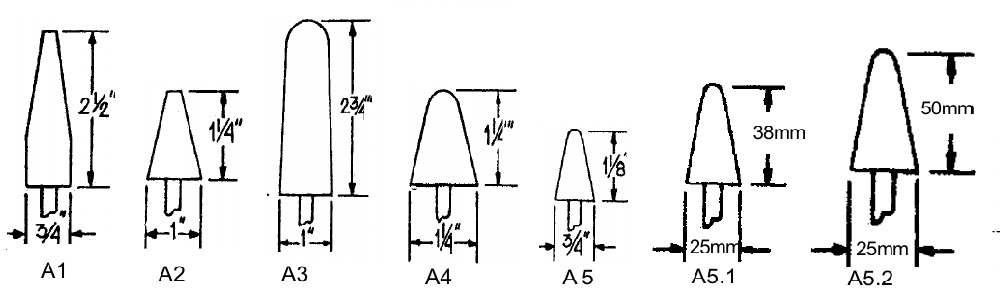

| 109-02-A01 | ANCHOR | A 1 | 3/4" | 2-1/2" | |
| 109-02-A02 | ANCHOR | A 2 | 25mm | 32mm | |
| 109-02-A03 | ANCHOR | A 3 | 1" | 2-3/4" | |
| 109-02-A04 | ANCHOR | A 4 | 1-1/4" | 1-1/4" | |
| 109-02-A05 | ANCHOR | A 5 | 19mm | 28mm | |
| 109-02-A051 | ANCHOR | A 5.1 | 25mm | 38mm | |
| 109-02-A052 | ANCHOR | A 5.2 | 25mm | 50mm | |

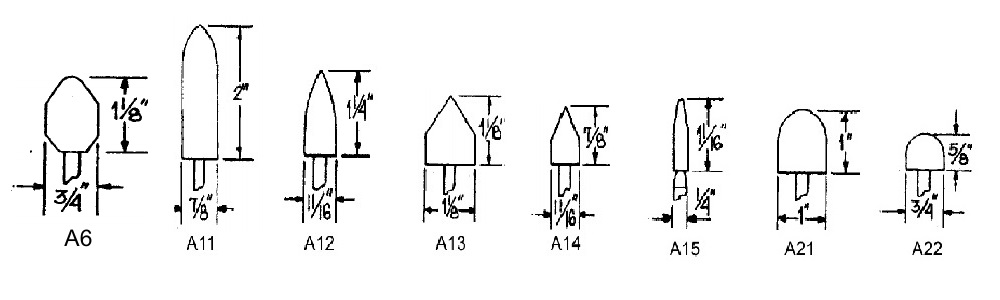

| 109-02-A06 | MODERN | A 6 | 3/4" | 1-1/8" | |
| 109-02-A11 | MODERN | A11 | 7/8" | 2" | |
| 109-02-A12 | ANCHOR | A12 | 11/16" | 1-1/4" | |
| 109-02-A13 | MODERN | A13 | 1-1/8" | 1-1/8" | |
| 109-02-A14 | ANCHOR | A14 | 11/16" | 7/8" | |
| 109-02-A15 | ANCHOR | A15 | 1/4" | 1-1/16" | |
| 109-02-A21 | ANCHOR | A21 | 25mm | 25mm | |
| 109-02-A22 | MODERN | A22 | 3/4" | 5/8" | |

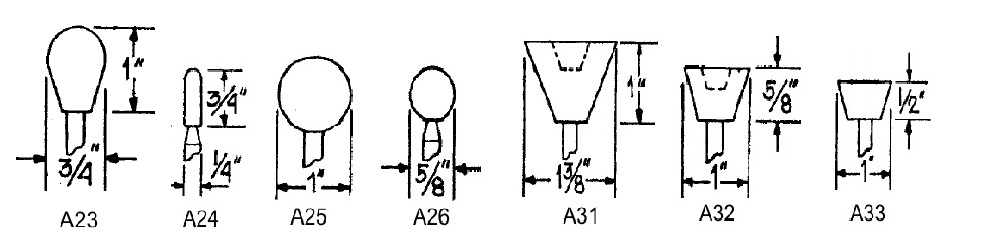

| 109-02-A23 | MODERN | A23 | 3/4" | 1" | |
| 109-02-A24 | ANCHOR | A24 | 1/4" | 3/4" | |
| 109-02-A25 | ANCHOR | A25 | 1" | 1" | |
| 109-02-A26 | MODERN | A26 | 5/8" | 5/8" | |
| 109-02-A31 | MODERN | A31 | 1-3/8" | 1" | |
| 109-02-A32 | MODERN | A32 | 1" | 5/8" | |
| 109-02-A33 | MODERN | A33 | 1" | 1/2" | |
| 109-02-A34 | ANCHOR | A34 | 38mm | 10mm | |

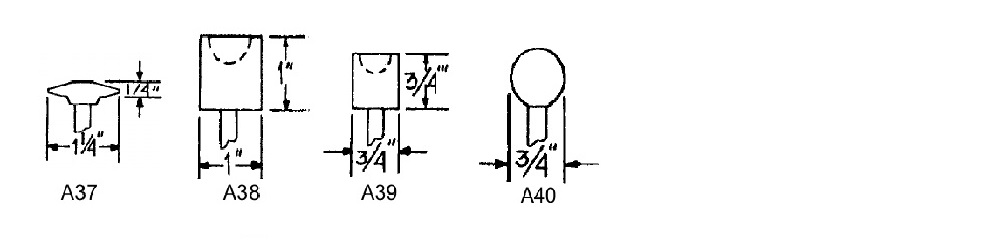

| 109-02-A37 | ANCHOR | A37 | 1-1/4" | 1/4" | |
| 109-02-A38 | ANCHOR | A38 | 25mm | 25mm | |
| 109-02-A39 | ANCHOR | A39 | 19mm | 19mm | |
| 109-02-A40 | MODERN | A40 | 3/4" | 3/4" |
